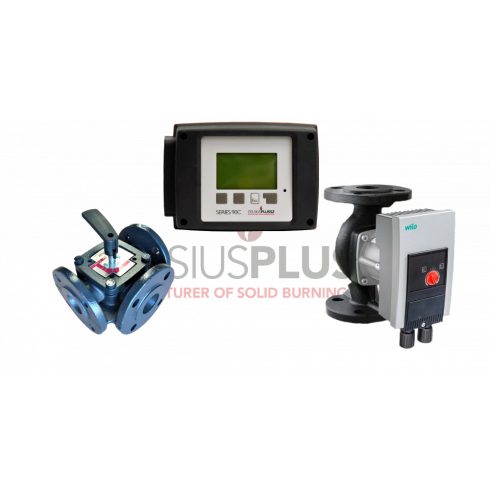

Celsius anticondensing unit to 300 kW
High efficiency boiler protection package with its own controller for the following systems:
- The boiler is directly connected to the heat dissipation circuit (without buffer).
- The boiler works directly on a buffer tank.
- The boiler works on a larger buffer tank for more serious heat storage complete with a motorized diverter valve. Optional accessory!
Pump data:
Energy efficiency index (EEI) |
≤ 0,20 |
Max. Transport height |
12 m |
Max. Flow rate |
21 m³/óra |
Max. Static pressure |
PN 10 |
Network connection |
1 ∼ 230 V ± 10 %, 50/60 Hz
3 ∼ 230 V ± 10 %, 50/60 Hz
|
Security rating |
IPx4D |
Insulation classification |
F |
Speed |
950 - 4600 rpm |
Power consumption |
15 - 550 W |
Current consumption |
0,17 - 2,4 |
Motor protection Integrated |
Integrated |
Interference resistance |
EN 61000-6-2 |
Sizes:
![Wilo keringető szivattyú, 300 kW](https://www.celsiusplussz.hu/shop_ordered/42646/pic/300-as_Wilo_HF_40-12_sizes.jpg)
![Wilo keringető szivattyú 300 kw](https://www.celsiusplussz.hu/shop_ordered/42646/pic/300-as_Wilo_HF_40-12_sizes_2.jpg)
Sign Font |
Sizes |
a1 |
315 mm |
a2 |
64 mm |
b4 |
71 mm |
b5 |
71 mm |
I0 |
250 mm |
I1 |
125 mm |
I3 |
152 mm |
I4 |
109 mm |
90C control unit
![Esbe 90 C keverőszelep vezérlő](https://www.celsiusplussz.hu/shop_ordered/42646/pic/Esbe_90C_controller.png)
The operating range of the mixing valve is 90 °, which can be easily operated by hand. In addition to two-point signal control, it is also capable of 3-point signal control.
The 90 C controller with two-point signal control can be used for 24 or 230 V AC, 50 Hz AC. Different run times are available from 15 to 60 seconds. The package includes a 1.5 m long network cable.
The auxiliary switch can be adjusted to any position or, with a unique solution, can be easily disassembled without tools, thus gaining access to the switch.
TECHNICAL DATA |
Ambient temperature |
max. +55°C
min. -5°C
|
Power supply |
23V ± 10% V C, 50 Hz |
Power consumption |
230 V 5 VA |
Security classification |
IP41 |
Security department |
II |
Auxiliary switch |
6(3) A 250 V AC |
Weight |
0,4 kg |
![Celsius kazánvédő csomag ipari teljesítmény](https://www.celsiusplussz.hu/shop_ordered/42646/pic/Datasheet_Yonos_PARA_High_Flow_40_12_diagram_1.png)
![](https://www.celsiusplussz.hu/shop_ordered/42646/pic/Datasheet_Yonos_PARA_High_Flow_40_12_Diagram_2.png)
Suggested systems
1. version
![Kesselschutzpaket](https://www.celsiusplussz.hu/shop_ordered/42646/pic/ESBE_B-max_300_primer_hidroval.jpg)
2. version
![Kesselschutzpaket](https://www.celsiusplussz.hu/shop_ordered/42646/pic/ESBE_B-max_300_primer_pufferrel.jpg)
