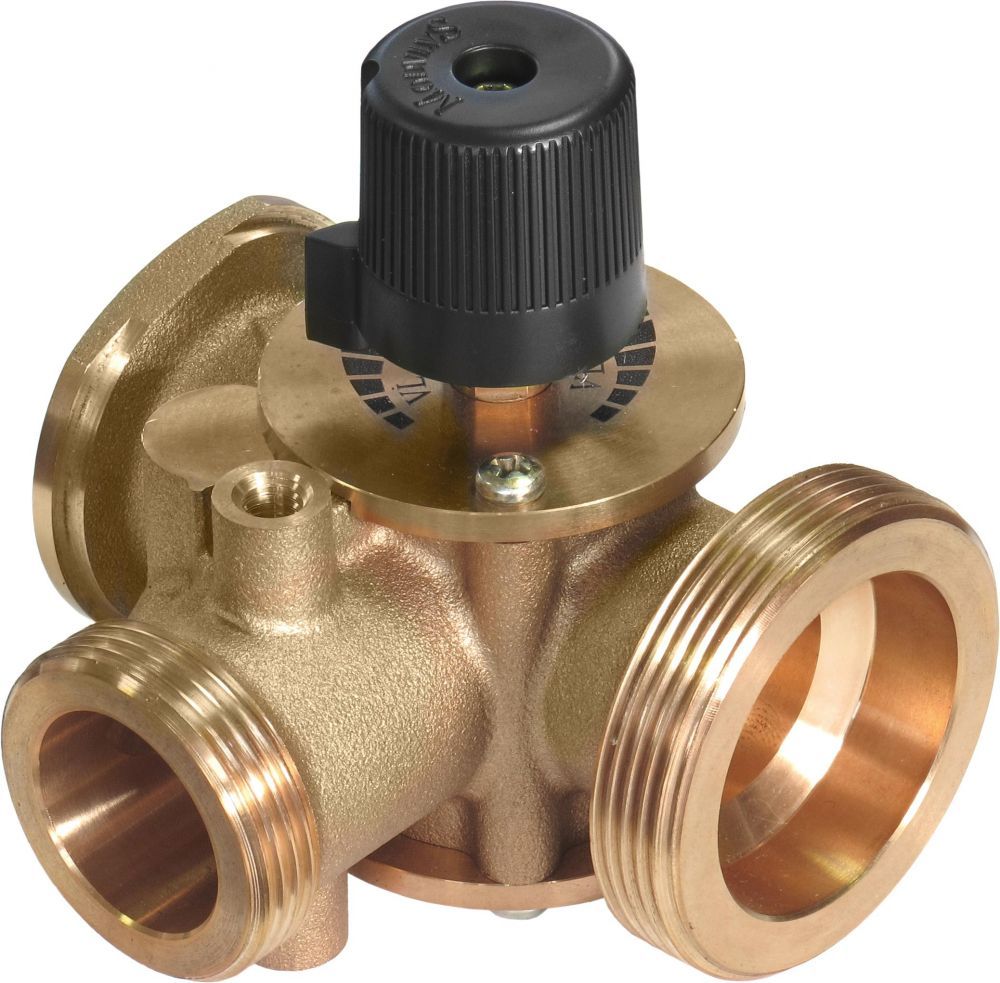

3-way mixing valve with by-pass

3-way mixing valve with by-pass

3-way mixing valve with by-pass 0-50%

  • 3-way mixing valve for pump units. Suitable for motorization and fully reversible (to be placed both on the left and on the right side of the pump unit). Connection to the circulating pump through the flanged side. Yellow brass finish. The nut is not included. Working torque: less than 3 Nm.

    3-way mixing valve with by-pass 0-50%
    3-way mixing valve with by-pass. The built-in by-pass has an adjustable flow up to 50% of the total flow rate range of the valve (especially suitable for underfloor heating installations).
    Yellow brass finish. The nut is not included.
    Motor connection: standard Esbe.
    Working torque: less than 3 Nm.
    PN 10. Max Temperature 110°C.
    Kvs value: 24 Maximum leakrate in % of flow: 0,05.
    Dimension: 2”
    Nut (circulating pump): 5/4”
