Celsius solar modul up to 50m2 collector surface (25kW)

Details

Celsius Solar Modul



Celsius solar modul up to 50m2 collector surface (25kW)



Compact, fully assembled pump unit to supply the heat produced by a solar thermal installation with High Flow or Low Flow operating mode. Suitable to be used with 1 buffer storage tank. It is supplied fully insulated and pre-wired, with pre-programmed controller and it allows a fast and easy mounting.
Applicable: for power up to 25 kW and for solar collectors surface up to 50m2.

Measurements: 576x585x190 mm (EPP insulation box)



Advantages:

  • Economical, during sunshine the natural and free heat energy can be used to produce DHW, on cloudy days to night heating and pool heating.
  • Space-saving, compact solution. With the Celsius solar modul we only need to supply the solar collectors in the required size, all the other accessories are included in the modul.
  • No need for a puffer with heat exchager, since its alredy included in the modul.
  • Able to provide sufficient heating in the early spring or late fall.Central heating can be shut down earlier or launched later.
  • Combinated with a DHW modul, it provides a continiuos source of DHW even in off heating season.
  • Easy to install, fully insulated, pre-wired, and programmed unit.



Recommended collector surface for HDW and heating system associated

Buffer tank 750L - boiler max 29kW

8m2

Buffer tank 1000L - boiler max 43kW

12m2

Buffer tank 1500L - boiler max 56kW

18m2



The unit consist of:
Primary solar circuit:

  • Flowmeter with flow regulation with filling and draining valves. Alternatively a digital flowmeter is also
  • available.
  • Synchronous solar high efficiency circulating pump.
  • 3-way return ball valve with check valve 10 mbar supplied with in-handle thermometer.
  • Security unit 6 bar with manometer ø50 mm 0-10 bar with 3/4” male connection to the expansion vessel. End of drain side: 3/4” F.
  • Supply ball valve with check valve 10 mbar supplied with in-handle thermometer.
  • Air vent made of brass with automatic vent valve and isolating valve.



Heat exchanger:

  • Weld-braised plates heat exchanger made of stainless steel AISI 316 suitable for several powers.

Secondary circuit:

  • TÜV security valve 3 bar, 50 kW. End of drain side: 3/4” F
  • High efficiency synchronous circulating pump.



PN 10. Constant temperature on the solar circuit 120°C; (short time: 160°C for 20 s).
Maximum temperature on the secondary circuit 110°C.

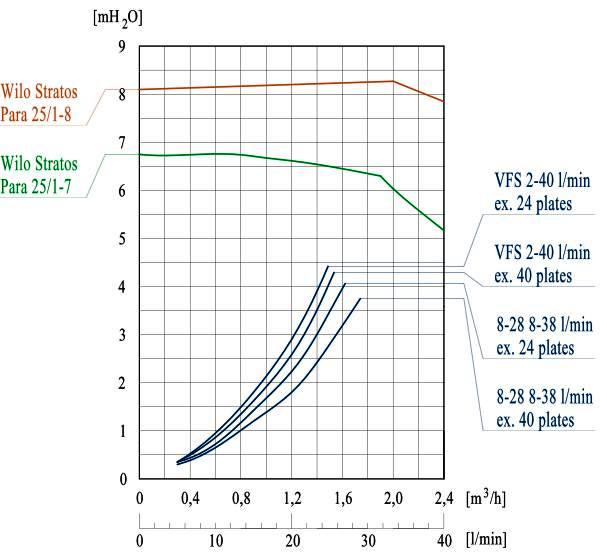

Solar side:

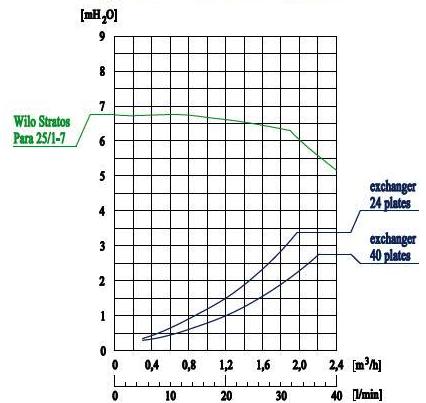

Buffer side:
